Key FeaturesSmall UV Curing Coating and Lamination Laboratory Coating Machine
This small UV curing laboratory coating machine with lamination functionality is designed for R&D and small-scale production.
Product Detail

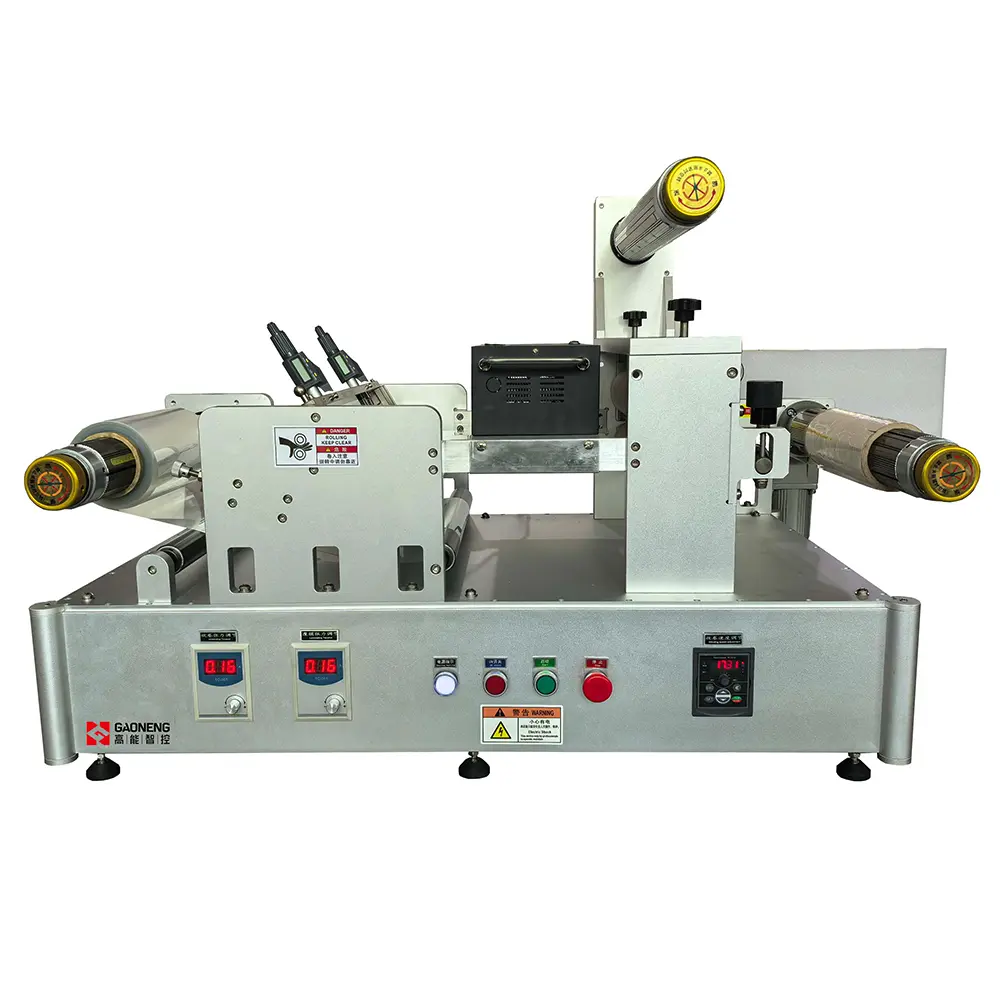

Small UV Curing Coating and Lamination Laboratory Coating Machine
This small UV curing laboratory coating machine with lamination functionality is designed for R&D and small-scale production. It is ideal for precision coating, UV curing, and film lamination processes, commonly used in industries such as electronics, medical, optical films, and advanced materials.
description2
Product parameters
| Product Name | MS-UV380 |
| Applications | Mobile phone cases, Automotive products, Special films |
| Substrates | PET |
| Control System | Self – developed by BoSen |
| Coating Width | 380mm |
| Coating Methods | Doctor blade coating |
| Coating Thickness | 0.01-1MM |
| Coating Accuracy | （Uniformity ±3%） |
| Thickness Adjustment | Digital Micrometers |
| Coating Speed | 0.5-3 m/min（Adjustable according to glue drying condition） |
| Solution Feeding Methods | Manual glue supply |
| Rewind and Unwind Diameter | 300mm |
| Rewind and Unwind Airshafts | 3-inch Airshaft |
| UV Curing Length | 0.5m |
| Post Lamination | Rubber Roller |
| Tension Control System | Adjustable |
| Power Source | Input Voltage: AC220V |
| Power Capacity | 6KW |
